How MEFU Flatbed Machines Eliminate Bubbles And Wrinkles On Rigid
Substrates
What’s worse than completing a large-format printing project? The
answer is that encountering a catastrophic failure—massive bubbles
and wrinkles—in the final lamination step results in wasted
material and lost time.
For sign shops and print professionals working with rigid
substrates (like PVC, acrylic, aluminum composite panels, and foam
board), this problem is a constant threat. Traditional lamination
methods often fall short because they are designed for flexible
materials, not hard, unforgiving panels.

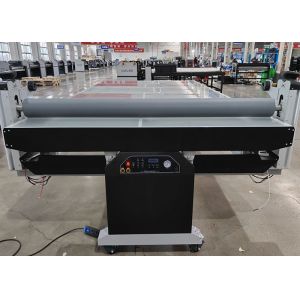

The MEFU Flatbed Laminator is engineered specifically to address
this industry challenge. This article will provide a deep dive into
how MEFU utilizes its unique design and technology to achieve
zero-defect lamination on rigid substrates, helping you finally say
goodbye to uneven pressure, trapped air, and scrap material.
Analyzing the Root Causes of Lamination Failure
To understand the MEFU solution, we first need to identify why
conventional methods often fail when working with rigid materials:
| Lamination Problem | Cause with Traditional Methods (e.g., Roll-to-Roll) |
|---|
| Bubbles | Uneven pressure application, air being trapped prematurely or
quickly at the contact point, or dust or debris on the substrate
surface. |
| Wrinkles | Inconsistent film tension; incorrect feeding angle; non-parallel
roller pressure causing the film to skew or stretch. |
| The Rigid Substrate Challenge | Hard boards lack flexibility, meaning they cannot conform to
rollers or be easily bent to help expel air. This demands absolute
pressure uniformity across the entire surface. |
MEFU’s Core Technology Solutions
The MEFU flatbed design fundamentally solves these issues by
shifting the operational mechanics from a stress-inducing roller
system to a controlled, pressure-managed flat surface.
A. Uniform Pneumatic Pressure System (The Bubble Buster)
The secret to achieving perfectly smooth lamination lies in
maintaining consistent pressure.
How it Works: MEFU flatbed machines use a dedicated pneumatic
(air-powered) system to control the precise pressure applied by the
lamination roller, replacing the less reliable mechanical screws or
springs found in many conventional machines.
The Advantage: This air-assist system guarantees that the roller
delivers a perfectly consistent and adjustable pressure across its
entire working width. This process uniformly pushes any trapped air
from the center of the substrate toward the edges, effectively
eliminating the pockets of air that cause bubbles.
Key Feature: The ability to fine-tune the Uniform Pressure
Distribution is critical for working with substrates of varying
thickness and rigidity.
B. The Flatbed Table and Precision Manual Control (The Wrinkle
Eliminator)
A wrinkle is often the result of misalignment or uneven material
tension during the feed process.
How it Works: Rigid substrates are placed stably on a hardened,
perfectly flat working table. Instead of the material moving
through rollers, the roller assembly (the Gliding Beam) travels
smoothly over the stationary material.
The Advantage:
Flawless Alignment: Because the substrate is fixed, operators can
achieve perfect, single-pass alignment on even oversized graphics,
preventing the need for repositioning that can introduce wrinkles.
Controlled Application: The operator manually controls the speed of
the Gliding Beam. This allows for real-time speed adjustment based
on the substrate and film type, preventing fast movements that can
stretch the film and lead to tension-induced wrinkles.
C. Heat-Assist Function for Enhanced Adhesion (Boosting Quality)
For certain applications, the lamination quality can be further
improved by applying controlled heat.
How it Works: MEFU flatbed models offer an infrared temperature
control function that provides low-temperature heat (typically up
to 60°C) to the pressure-sensitive film. The Advantage: This gentle
warmth activates the adhesive’s "wet-out" capacity, allowing the
Enhanced Adhesion of the film to better flow and bond onto the
micro-texture of the substrate surface. This improved bond
significantly reduces the risk of microscopic air pockets and
ensures a lasting, high-quality finish without compromising the
rigid base material.
The Zero-Defect Workflow in Action
Using a MEFU flatbed laminator turns a stressful, high-risk process
into a smooth, efficient workflow:
Preparation: Place the rigid substrate onto the table. Many MEFU
tables are illuminated with LED lights, making even the smallest
dust particles (a primary cause of bubbles) clearly visible and
easy to remove before application.
Registration: Quickly and precisely position the printed graphic
(e.g., vinyl) onto the substrate. The flat table ensures perfect
Alignment.
Application: Lower the pneumatic roller using a simple foot pedal
or control panel, setting the exact pressure needed. The operator
then smoothly guides the beam across the material.
Result: The job is completed in a single pass, guaranteeing a
bubble-free, wrinkle-free finish and drastically increasing your
production yield.
