In the high-stakes world of signage, graphics, and display
printing, the finishing process is where quality and profitability
are won or lost. For wide format applications, a standard laminator
requires a time-consuming, two-step process to apply film to both
sides.

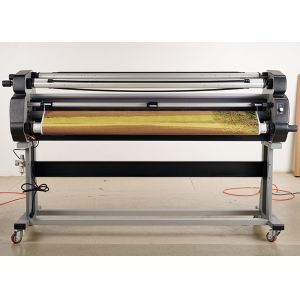

The MF1700-D4 Roll-to-Roll Double Sided Laminator changes this
narrative. This guide introduces you to the concept of "Single
Pass, Dual Protection," and breaks down how the MF1700-D4’s
advanced feature set—including high speed, intelligent controls,
and integrated cutting—makes it the definitive solution for
maximizing your production line.
1. The Core Efficiency Advantage: Single Pass, Dual Protection
The defining feature of the MF1700-D4 is its ability to perform
high-quality, double-sided lamination in a single continuous run.
This capability directly translates into massive productivity gains
for your print shop:
Time Savings: Eliminate labor, risk, and time spent unloading,
flipping, and reloading materials for the second pass.
Consistency: Maintains perfect registration and alignment from
start to finish, crucial for double-sided displays.
MF1700-D4 Speed and Power
| Feature | Specification & Benefit |
| High Speed Motor | Up to $20m/min$. This industrial speed dramatically cuts job
completion times, allowing you to meet aggressive deadlines. |
| Pneumatic Active Cutting Bar | Inline finishing is activated by air pressure. This feature ensures
immediate, clean trimming as the material exits the laminator,
completing the job faster. |
2. Uncompromising Quality and Precision
High speed means nothing without precision. The MF1700-D4
integrates several key design elements to ensure that even at
20m/min, your output is flawless, bubble-free, and professional.
Engineering for Excellence
- Super 130mm Silicon Rollers: Rollers with a larger diameter provide
a significantly longer contact surface. This allows for superior,
consistent pressure distribution and heat transfer (if applicable),
guaranteeing a deep, long-lasting bond and a perfectly smooth
finish across the entire wide format area.
- Anti-Static String: Static electricity is the nemesis of clean
lamination, attracting dust and causing material drag. The
anti-static string efficiently neutralizes static buildup during
high-speed operation, ensuring a cleaner, smoother, and defect-free
final product.
- Precise Vertical Cutters (15000m+ Durability): Equipped with
durable tungsten blades that last over 15000m, these cutters can be
fully adjusted for position. This integrated cutting system ensures
clean separation of prints inline, increasing both efficiency and
output quality.
3. Intelligent Design for Operator Ease (The "Smart" Advantage)
Overseas customers value ease of use and low maintenance. The
MF1700-D4 is built with operator convenience in mind, minimizing
training requirements and maximizing machine uptime.
Smart Operation & Control
| Feature | Benefit to the Operator and Manager |
| New Control Panel (Easy & Fully Functional) | The modern interface is intuitive for quick setup, yet retains full
functionality for detailed job adjustments, minimizing learning
curves and errors. |
| Smart Entry System (Configuration) | Streamlines the process of feeding media into the machine, guiding
the substrate to ensure proper alignment right from the start. |
| Front and Rear Control Panels | Provides flexibility for a single operator to manage all essential
functions (speed, start/stop) from either end of the large machine,
improving safety and workflow dynamics. |

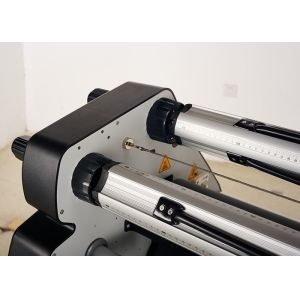

| Upgraded Shaft Cap and Holder | Features an easy lock-and-load mechanism, drastically simplifying
and speeding up media and film roll changes, thereby reducing
downtime between jobs. |
4. Investing in Your Future Capacity
The MF1700-D4 Wide Format Laminator is more than an equipment
purchase; it's a strategic investment that fundamentally transforms
your finishing capability. By leveraging its 20m/min speed,
integrated cutting, and single-pass efficiency, you immediately:
- Lower Cost-per-Laminated-Square-Foot.
- Enhance Product Quality for a competitive advantage.
- Increase Capacity to handle higher volumes and larger projects.
This guide proves that achieving "Single Pass, Dual Protection" is
not just possible—it’s the new benchmark for professional wide
format finishing.
