Beyond Pressure: Exploring The Advantages Of A 130mm Heated Silicon
Roller In Application Tables
In wide-format finishing, achieving a flawless, enduring bond for
pressure-sensitive graphics traditionally relies solely on brute
force—pneumatic pressure. However, for high-end applications,
outdoor signage, and textured media, relying on pressure alone
often falls short, leading to common failure points like
"silvering" and premature edge lifting.

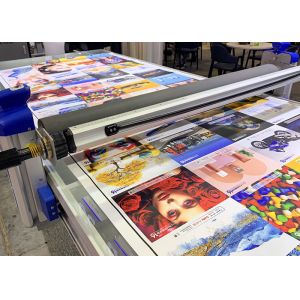

The innovative 130mm Heated Silicon Roller in modern flatbed
applicators offers a step Beyond Pressure. This system introduces
precisely controlled, low-level heat, fundamentally changing the
physics of adhesive bonding. But what tangible difference does this
make on the production floor? We conducted a comparison to
illustrate the significant advantages.
Case Study: The Shop Floor Showdown
We examined two comparable sign shops, both dealing with high
volumes of vehicle wrap laminates and outdoor display graphics:
| Shop | Equipment | Application |
| Shop A (Traditional) | Standard Flatbed Applicator with Cold (Ambient) Roller | Applying self-adhesive vinyl to composite boards and clear film to
backlit prints. |
| Shop B (Innovator) | Flatbed Applicator with 130mm Heated Silicon Roller | Applying the same materials but utilizing a 30°C to 50°C heat
assist setting. |
Analysis Point 1: Eliminating "Silvering" and Micro-Bubbles
| Challenge | Shop A (Cold Roller) | Shop B (Heated Roller) |
| Silvering/Clarity | High incidence, especially in the first 24 hours. Operators often
had to wait for the gas to/settle, delaying delivery. | Virtually eliminated. The low heat fluidizes the adhesive, allowing
trapped air and residual solvents to escape immediately during
application. |
| Outcome | Delivery Delay: Required significant settling time (up to 2 days)
to guarantee optical clarity, impacting turnaround time. | Instant Quality: Products were finished and ready for dispatch
immediately, reducing lead times by 40%. |
Key Takeaway: The heat assistance ensures the adhesive forms a
deep, uniform bond instantly, preventing micro-imperfections that
degrade visual quality. This is particularly crucial for backlit
displays where clarity is paramount.
Analysis Point 2: Enhanced Adhesive Activation and Longevity
| Challenge | Shop A (Cold Roller) | Shop B (Heated Roller) |
| Bond Strength (Edges) | Noticed weak spots and occasional edge lifting on heavy outdoor
boards after two months, requiring costly reworks. | Superior Bond: The heat activates the adhesive polymers more fully,
resulting in a stronger thermal-assisted bond that resists
environmental factors. |
| Outcome | Rework Cost: Experienced a 5% rework rate on complex vehicle wrap
sections due to initial weak adhesion on contours. | Reliability: Rework rate dropped to less than 1%. The stronger bond
guaranteed the print’s longevity, a major selling point for
clients. |
Key Takeaway: The 130mm Silicon Roller provides a large, even
contact area. When heated, this contact area delivers just enough
energy to maximize the adhesive’s performance, making the final
product significantly more durable for outdoor use and high-traffic
areas.
Analysis Point 3: Material Versatility and Operator Efficiency
| Challenge | Shop A (Cold Roller) | Shop B (Heated Roller) |
| Media Range | Limited to standard pressure-sensitive films. Struggled with
specialist films (e.g., thick, textured, or low-tack). | Expanded Versatility: Successfully applied a wider range of films,
including those requiring subtle heat to properly conform to
textured surfaces. |
| Outcome | Process Frustration: Operators often required multiple passes and
intensive manual smoothing to handle difficult media. | Effortless Application: The roller's heat softens the film, making
it more pliable and allowing a smooth, single-pass application,
significantly improving operator comfort and efficiency. |
By combining the consistent pressure of the 130mm silicon roller
with controlled heat assistance, your shop gains:
- Instant Delivery Quality: Eliminate silvering and deliver projects
faster.
- Unmatched Durability: Achieve a superior, lasting bond for maximum
product longevity.
- Expanded Versatility: Confidently work with a wider range of
high-margin media.
This powerful configuration transforms your application table into
a true performance workstation, guaranteeing a flawless, durable
finish every time.
